VG (SER.61) model

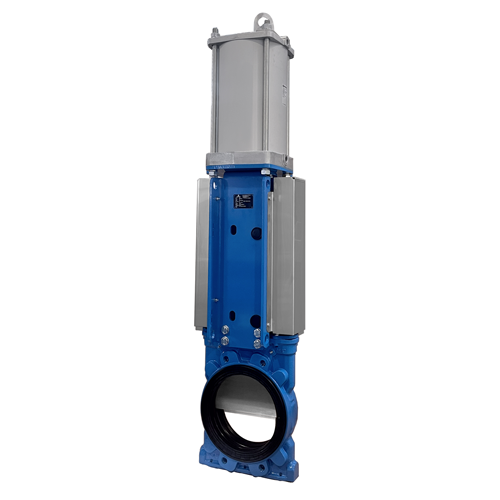

Slurry bi-directional wafer style knife gate valve with rubber sleeves

The VG model knife gate is a wafer valve designed for a wide range of industrial applications. The double-seated design provides bi-directional shut off. The design of the valve body and the two rubber sleeves makes the VG valve suited for use in handling abrasive slurries in industries such as:

  • Mining
  • Power plants
  • Chemical plants
  • Wastewater treatment
  • etc.

Sizes
DN 50 to DN 900 (larger DN on request)

Working pressure
DN 50 to DN 400: 10 bar
DN 450 to DN 600: 6 bar or 10 bar
DN 700 to DN 900: 5 bar

Note: higher working pressures on request.

Standard flange connection
EN1092 PN10
ANSI B16.5 (class 150)

OTHER FLANGE CONNECTION (ON REQUEST)

Standard face to face
see the catalogue

Directives
DIR 2006/42/CE (MACHINERY)
DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 2014/34/EU (ATEX) Please contact Orbinox for information and availability of categories and zones.
